About this item

• 【Safety & Reliability】Our surveillance power supply box ensures maximum safety with built-in lightning protection, overload protection, and short circuit protection. Each port is equipped with a separate fuse and LED indicator, providing individualized safety monitoring for your peace of mind.
• 【Long-lasting Performance】With an independent PTC fuse and LED indicator for each output, our power supply box offers general protection, guaranteeing reliability for over 100,000 hours of continuous operation. In the event of a problem, only the affected output is impacted, ensuring uninterrupted surveillance across other channels.
• 【Short Circuit Protection】Experience uninterrupted surveillance with our power supply box's advanced short circuit protection feature. In the event of a short circuit, the independent PTC fuse will immediately open the circuit, automatically resuming normal operation once the issue is resolved.
• 【 High Voltage Protection】 Safeguard your equipment against unexpected voltage spikes with our power supply box's high voltage protection mechanism. Surge protection ensures that connected devices remain shielded from electrical surges, maintaining their optimal performance and longevity.
• 【Automatic Over-current Protection】 Our surveillance power supply box offers peace of mind with automatic over-current protection. In the event of excessive current flow, the power supply seamlessly transitions into a self-protection state, returning to normal operation once the issue is resolved, ensuring continuous surveillance without interruption.

Specification:

• Input Voltage ： AC 100-240V
• Input Voltage Frequency ： 50/60Hz
• Output Voltage ： DC 12V +/-5%
• Total Output Current ： 10A
• Total Outputs ： 18
• Fuse Type ： PTC (Resetable)
• Fuse Rating ： 1.1A
• Operation Temperature: -4F-140F

Package List

• 1 × Power Supply Box
• 1 ×AC Power Cord
• 2 ×Key Lock
• 1 ×instruction

Installation Steps

• 1.Turn power switch to"OFF"position.
• 2.Connect each camera device to one"+"/"-''power output pair
• 3.Plug the AC plug into 110V AC power outlet.
• 4.Turn power switch to " ON" position,the output LED indicator of each channel should be on.
• 5.Close the cover and secure it with the provided screws.

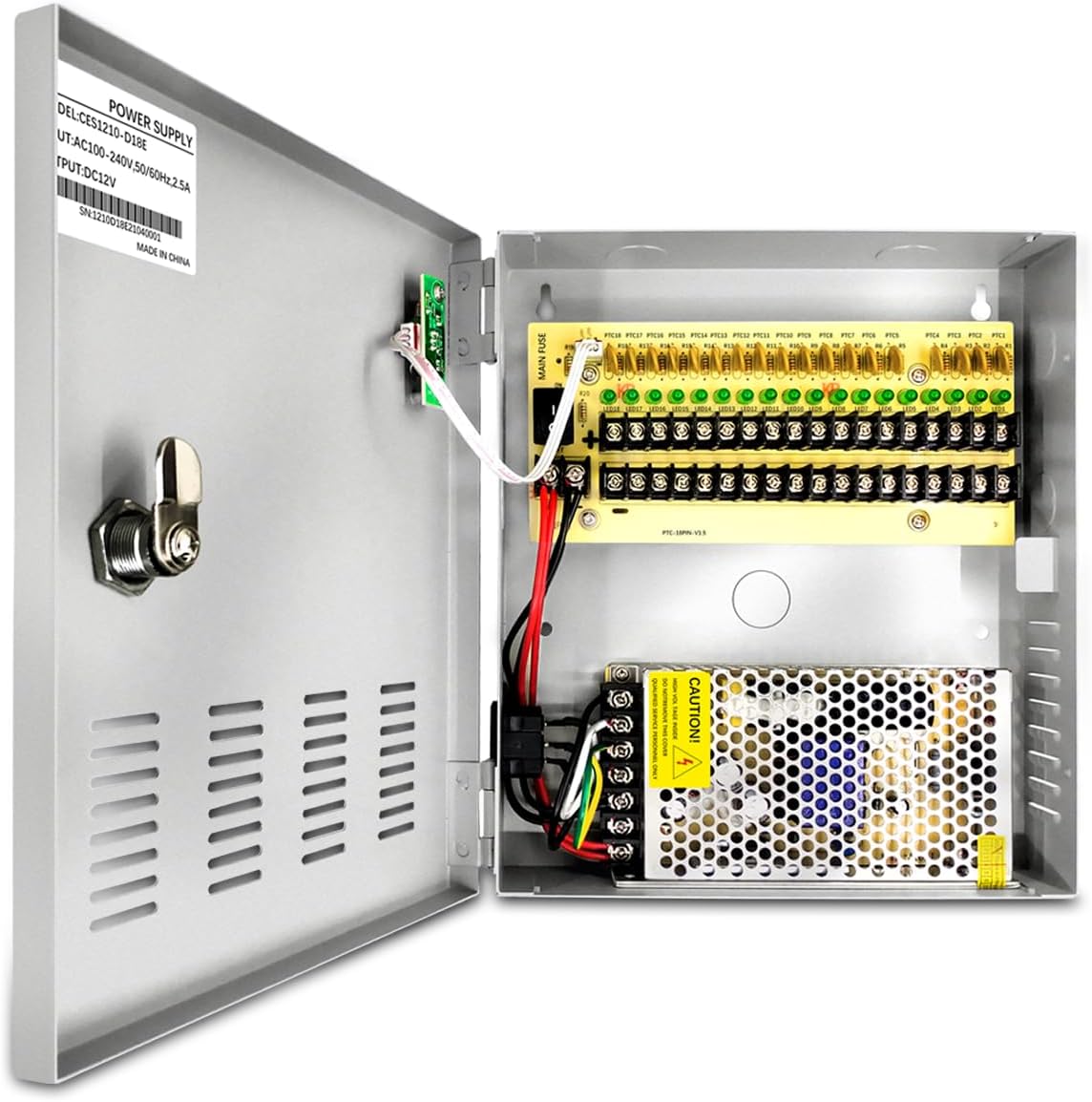

Secure Access with Lock & Key

With over-voltage protection, overload protection, overheating protection and prevent yellow circuit multiple protection function.

Separately Fused for Ultimate Reliance

Input port please follow the line L, N line & GND line connection; Output port, connect the positive and negative electrodes with red and black wires, respectively.

Suitable for Most 12V Devices

Switching power supply box as a power splitter, Applicable to a variety of DC electronic products.

Product Information

Product Dimensions:9.6 x 8 x 2.1 inches

Item Weight:3.83 pounds

Manufacturer:WEILAILIFE

Package Includes

1 × Power Supply Box

1 ×AC Power Cord

2 ×Key Lock

1 ×instruction

Customer Questions & Answers

Question:I want to install it inside a closet but afraid it heat up and get damaged.Is it warm?
Answer:My suggestion would be to have some ventilation in the cabinet...lower holes to let in cooler air...higher holes to let out warm air. I'd make sure there is air flow available for sure.

Question:my cameras input is 12V 2A and 4 A,will it fit?
Answer:Yes it does

Question:Does it come with the power cable?
Answer:Yes it does.

Warranty & Customer Service

Email: info@weilailifetech.com( reply within 24 hours).

Phone :+1(904)717-0799 (Eastern time Monday to Friday:9:00am - 5:00pm).

Warranty for 1 year from Date of Purchase
